P10 1/2 duty Outdoor High Brightness Advertising LED Display Screen
| Model: P10-O2S-SMD3535-32x16-L960xH960 |
| Brightness:≥7500CD/㎡ |
| Refresh frequency: ≥1920Hz |
| Gray Grade: 14 bits |
P10 1/2 duty Outdoor
Product description: P10 1/2 duty Outdoor High Brightness Advertising LED Display Screen, 1920Hz Refresh rate and 14 bit color depth , 7500cd/sqm brightness, fine display performance. Reliable quality, 2 year warranty.
P10 1/2 duty Outdoor High Brightness advertising LED display Screen Features:
1) Adopting SMD LED from Kinglight, ensuring high quality for the whole LED screen.
2) Perfect design of PCB,good heat emission capability,hence,stability of the P10 SMD3535 LED module.
3) Brightness 7500CD/m2, excellent display effect on daytime.
4) 10mm pixel pitch is suitable for outdoor commercial LED screen and Rental LED Screen.
5)New plastic cover with new mold, smaller module gaps and better screen flatness.
P10 1/2 duty Outdoor High Brightness advertising LED display Screen Applications:
Outdoor commercial LED screen
Outdoor advertising LED display
Outdoor advertising LED display Sign
|
LED Lamp Specification |
||||||
|
Color |
Package |
Intensity |
Viewing Angle |
Wavelength |
Testing Conditions |
|
|
Red |
SMD3535 |
800-1100mcd |
120° |
620-625nm |
25℃,20mA |
|
|
Green |
SMD3535 |
1600-2250mcd |
120° |
515-530nm |
25℃,20mA |
|
|
Blue |
SMD3535 |
350-500mcd |
120° |
465-475nm |
25℃,20mA |
|
|
Module Parameter |
||||||
|
Pixel Pitch |
10mm |
|||||
|
Pixel Configuration |
SMD3535 |
|||||
|
Density |
10,000 pixels/㎡ |
|||||
|
Module Resolution |
32pixel(L) * 16pixel(H) |
|||||
|
Module Dimension |
320mm(L) * 160mm(H) * 25mm(D) |
|||||
|
Driving Mode |
Constant current, 1/2 duty |
|||||
|
Module Mask |
Pure black mask---high contrast screen |
|||||
|

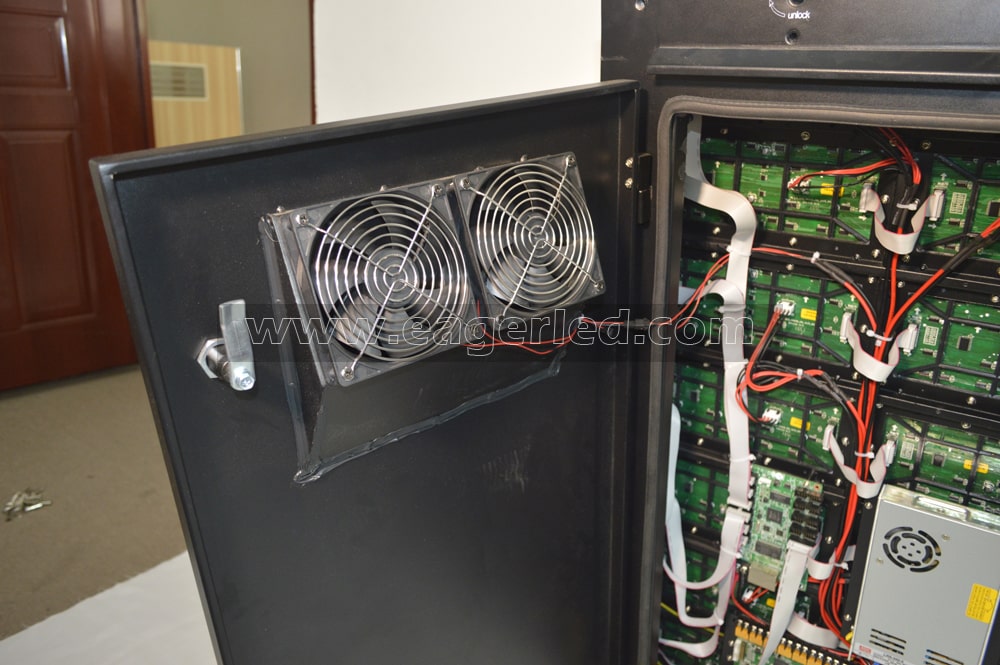

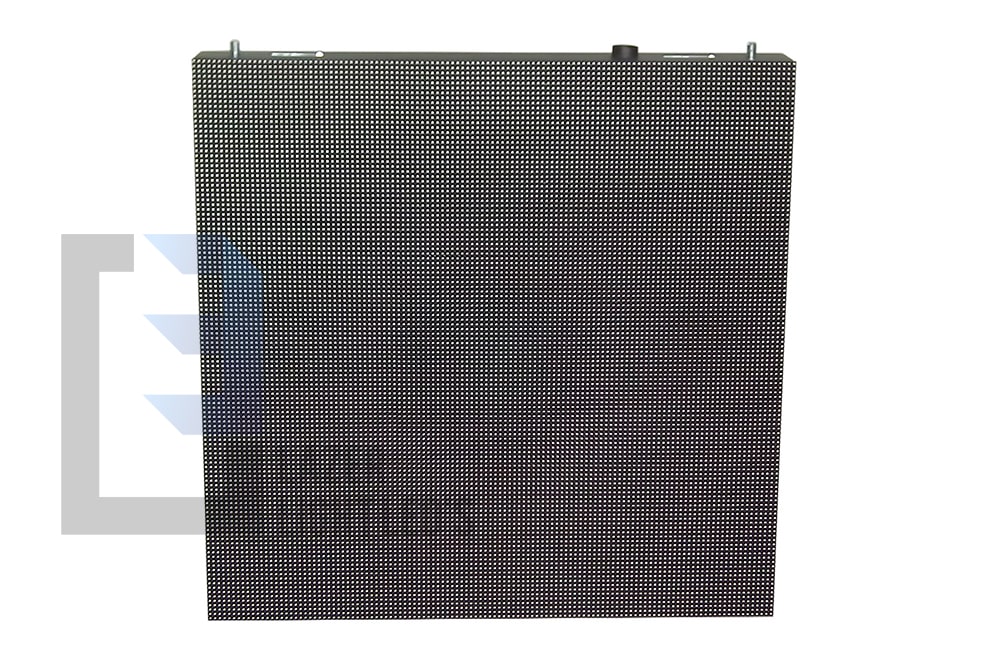

LED Cabinet |
||||||
|
Module Quantity in a Cabinet |
3(L) * 6(H) |
|||||
|
Cabinet Dimension |
960（L）* 960（H）* 150(D)mm |
|||||
|
Cabinet Resolution |
96(L) * 96(H) |
|||||
|
Cabinet Material |
Steel |
|||||
|
Cabinet Weight |
≈40KG |
|||||
|
Electricity Parameter |
||||||
|
Optical Ratings |
||||||
|
Brightness |
≥7,500 cd/㎡ |
|||||
|
Viewing Angle |
120°(Horizontal)； 120°(Vertical) |
|||||
|
Best Viewing Distance |
≥10m |
|||||
|
Gray Grade |
14 bits |
|||||
|
Display Color |
4.4 trillion Colors |
|||||
|
Brightness Adjustment |
100 grades by software or automatically by sensor |
|||||
|
Operation Power |
AC100-240V 50-60Hz Switchable |
|||||
|
Max. Power Consumption |
975 W/㎡ |
|||||
|
Avg. Power Consumption |
325 W/㎡ |
|||||
|
control system |
||||||
|
Frame Frequency |
≥60Hz |
|||||
|
Refresh Frequency |
≥1,920Hz |
|||||
|
Input Signal |
Composite Video, S-video, DVI, HDMI, SDI, HD-SDI |
|||||
|
Control Distance |
100m(Ethernet cable); 20KM(optical fiber cable) |
|||||
|
Support VGA Mode |
800*600, 1024*768, 1280*1024, 1600*1200 |
|||||
|
Color Temperature |
5000—9300 adjustable |
|||||
|
Brightness Correction |
Pixel by pixel, module by module, cabinet by cabinet |
|||||
|
Reliability |
||||||
|
Working Temperature |
-20～+60 ºC |
|||||
|
Storage Temperature |
-30～+70 ºC |
|||||
|
Working Humidity |
10%～90% RH |
|||||
|
Lifetime |
100,000 hours |
|||||
|
MTBF |
5000 hours |
|||||
|
Continuous Working Time |
≥72 hours |
|||||
|
Protection Grade |
IP65(front), IP54(rear) |
|||||
|
Out-of-Control Pixel Rate |
≤0.01% |
|||||
