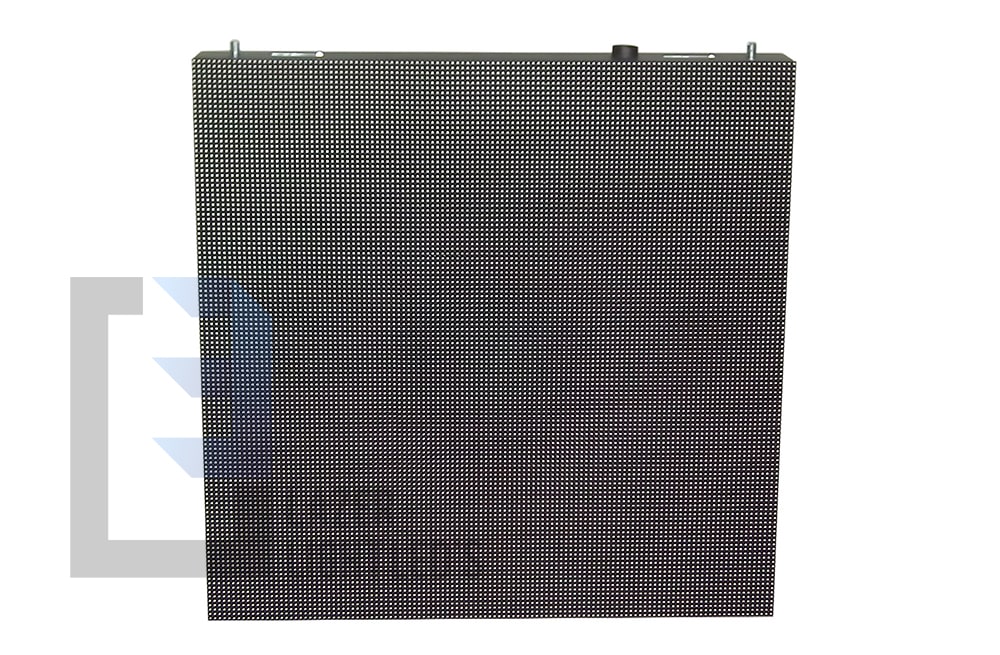

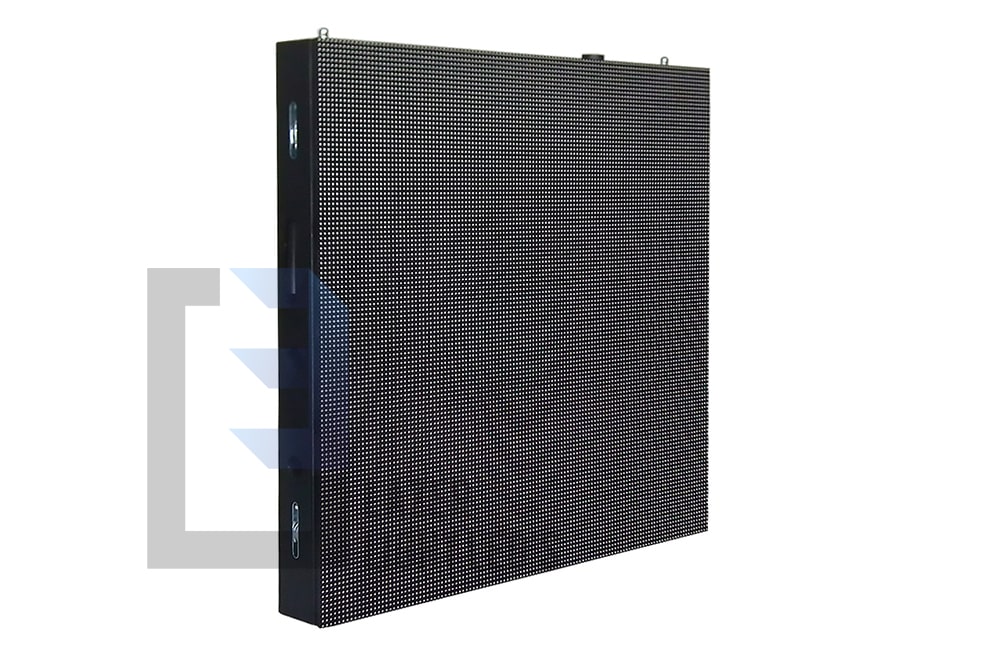

P10 Outdoor DIP Advertising LED Display Screen
| Model: P10-O4L-DIP346-16x16-L960xH960 |
| Brightness:≥7500cd/㎡ |
| Refresh frequency: ≥1920Hz |
| Gray Grade: 14 bits |
P10 Outdoor DIP Advertising LED Display Screen
Product description: P10 Outdoor DIP Advertising LED Display Screen, 1920Hz Refresh rate and 14 bit color depth , 7500cd/sqm brightness, fine display performance. Reliable quality, 2 year warranty. .
P10 Outdoor DIP advertising LED display Screen Features:
1)First level LED chip. We use high quality EPISTAR LED from Taiwan.
2)Clear vivid image display effect, even in direct sunshine. This ensures the advertising effect of the whole day.
3)High brightness, not less than 7500CD. This ensures that display effect in the outdoor environment.
4)Automatic brightness adjustment, avoiding light pollution.
5)Long lifetime. People can use P10 LED display for more than 10 years in good conditions.
P10 Outdoor DIP advertising LED display Screen Applicable
outdoor advertising LED screen, mobile truck/trailer LED display
P10 Outdoor DIP advertising LED display Screen Specification:
|
LED Lamp Specification |
||||||
|
Color |
Package |
Intensity |
Viewing Angle |
Wavelength |
Testing Conditions |
|
|
Red |
DIP346 |
880-1220mcd |
105° |
620-625nm |
25℃,20mA |
|
|
Green |
DIP346 |
1900-2300mcd |
105° |
522-525nm |
25℃,20mA |
|
|
Blue |
DIP346 |
450-650mcd |
105° |
468-470nm |
25℃,20mA |
|
|
Module Parameter |
||||||
|
Pixel Pitch |
10mm |
|||||
|
Pixel Configuration |
DIP346 |
|||||
|
Density |
10,000pixels/㎡ |
|||||
|
Module Resolution |
16pixel(L) *16pixel(H) |
|||||
|
Module Dimension |
160mm(L) * 160mm(H) * 30mm(D) |
|||||
|
Driving Mode |
Constant current, 1/4 duty |
|||||
|
Module Mask |
Pure black mask---high contrast screen |
|||||
|

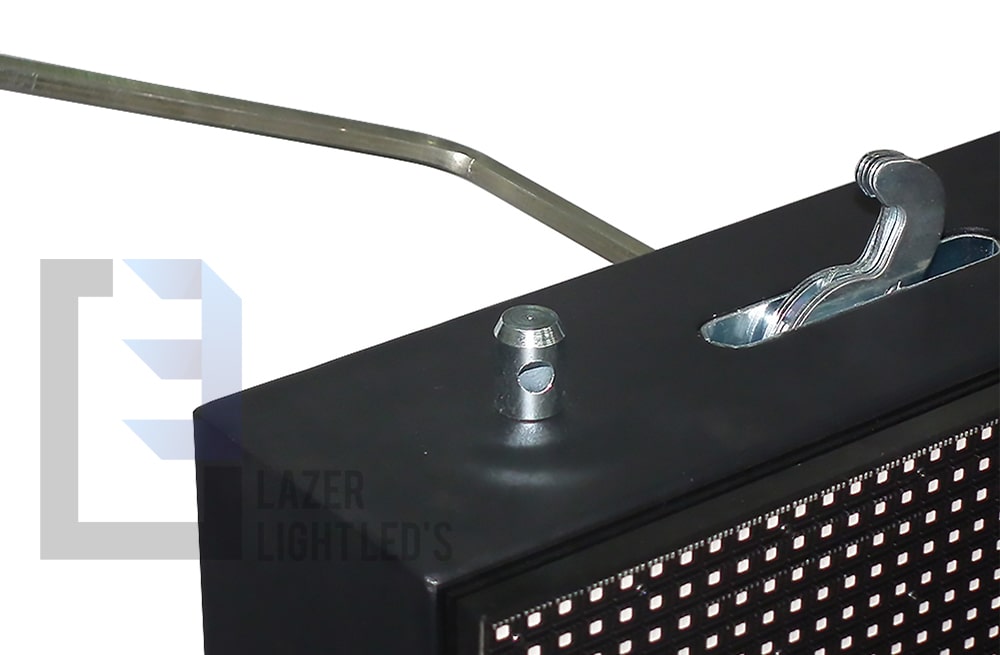

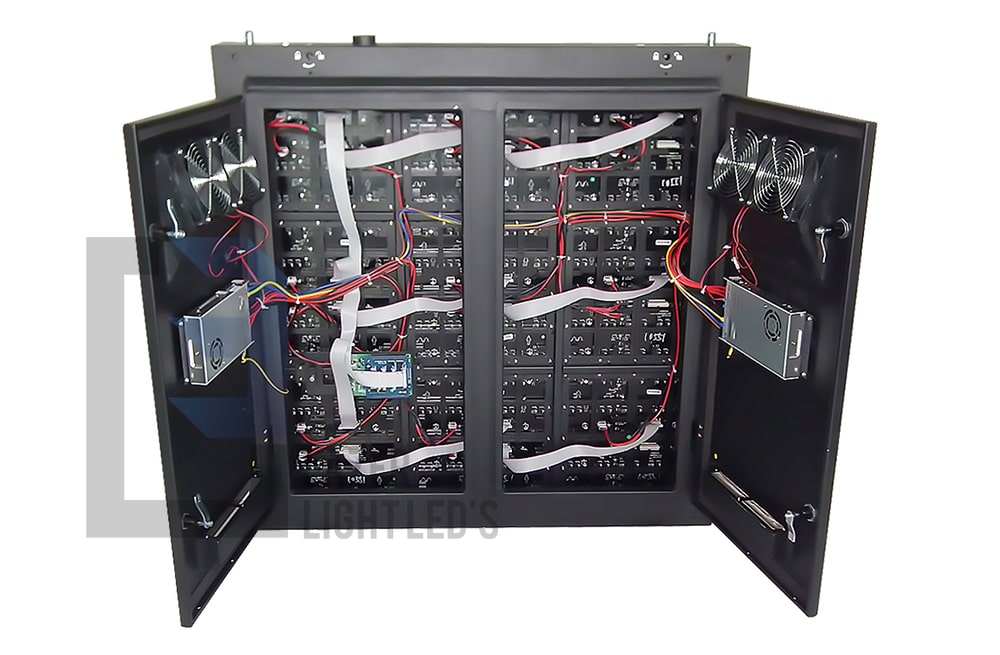

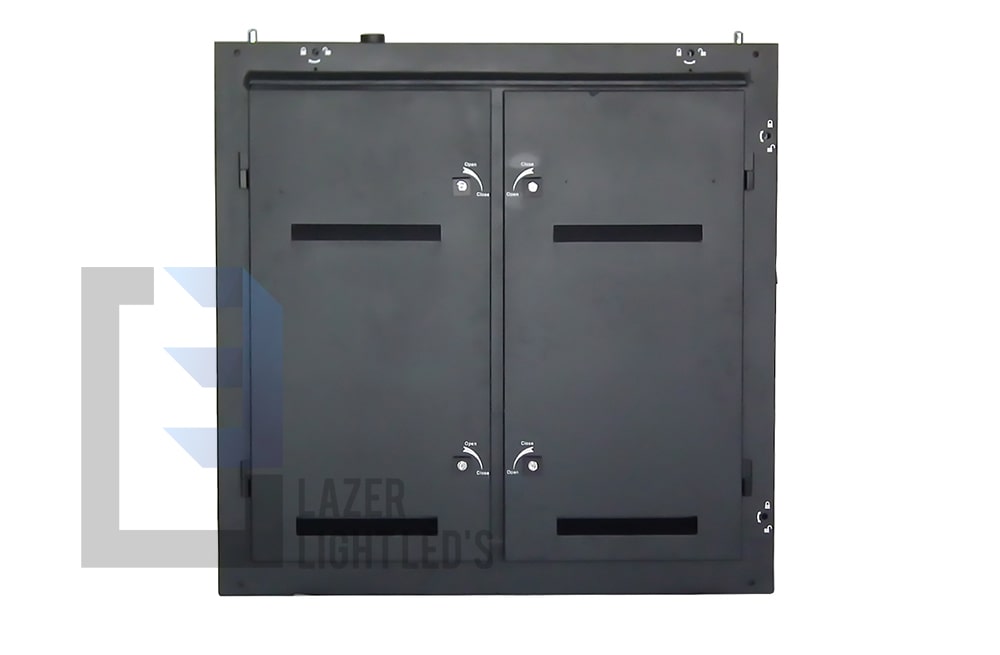

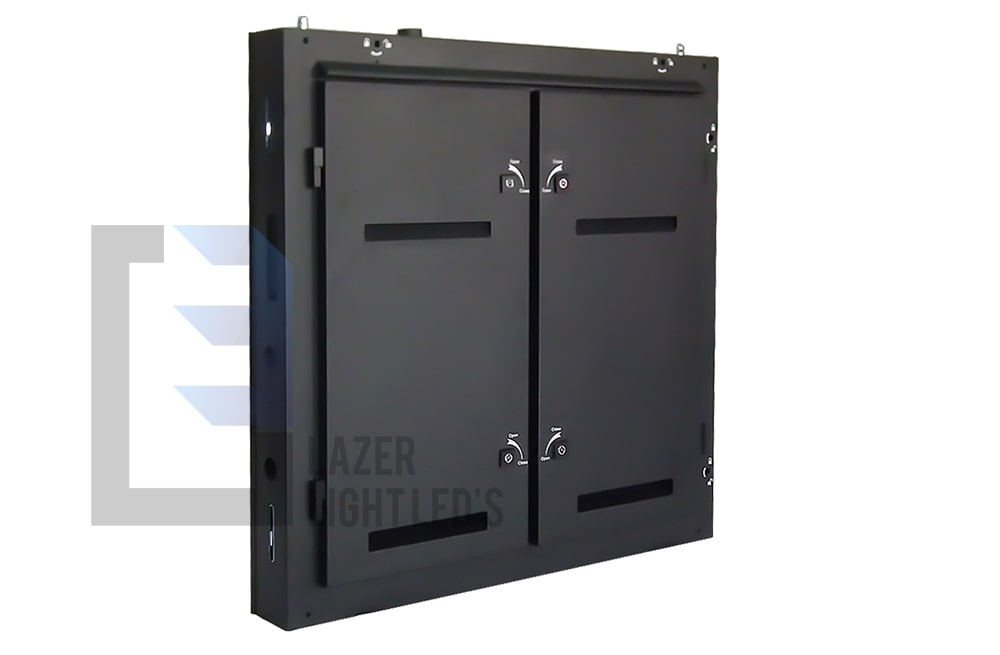

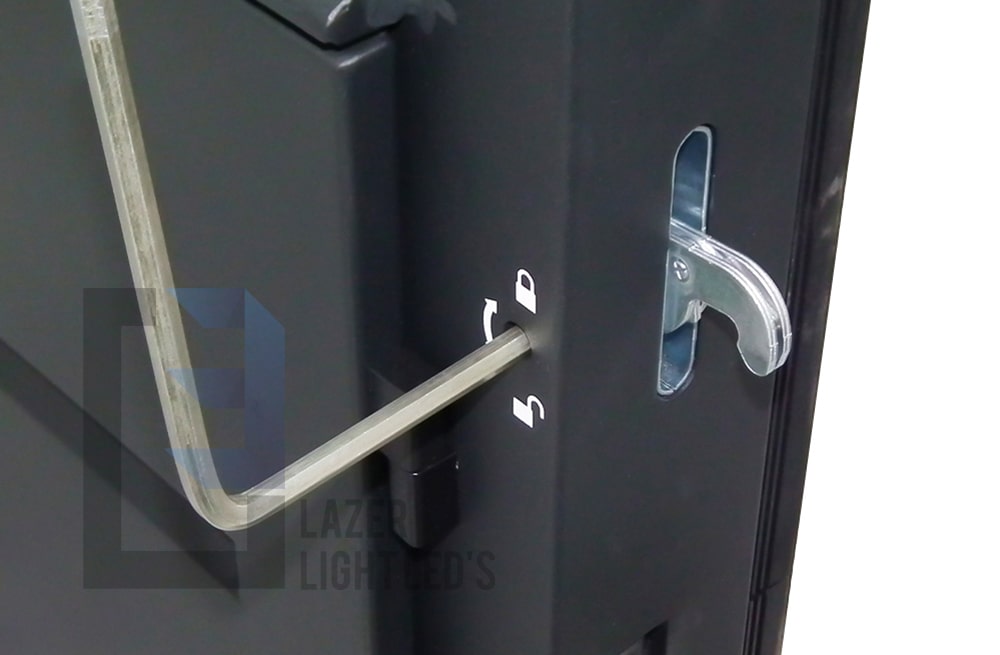

LED Cabinet |
||||||
|
Module Quantity in a Cabinet |
6(L) *6(H) |
|||||
|
Cabinet Dimension |
960（L）*960（H）* 150(D)mm |
|||||
|
Cabinet Resolution |
96(L) * 96(H) |
|||||
|
Cabinet Material |
Steel |
|||||
|
Cabinet Weight |
≈46KG |
|||||
|
Electricity Parameter |
||||||
|
Optical Ratings |
||||||
|
Brightness |
≥7,500 cd/㎡ |
|||||
|
Viewing Angle |
105°(Horizontal)； 105°(Vertical) |
|||||
|
Best Viewing Distance |
≥10m |
|||||
|
Gray Grade |
14 bits |
|||||
|
Display Color |
4.4 trillion Colors |
|||||
|
Brightness Adjustment |
100 grades by software or automatically by sensor |
|||||
|
Operation Power |
AC100-240V 50-60Hz Switchable |
|||||
|
Max. Power Consumption |
750 W/㎡ |
|||||
|
Avg. Power Consumption |
250W/㎡ |
|||||
|
control system |
||||||
|
Frame Frequency |
≥60Hz |
|||||
|
Refresh Frequency |
≥1,920Hz |
|||||
|
Input Signal |
Composite Video, S-video, DVI, HDMI, SDI, HD-SDI |
|||||
|
Control Distance |
100m(Ethernet cable); 20KM(optical fiber cable) |
|||||
|
Support VGA Mode |
800*600, 1024*768, 1280*1024, 1600*1200 |
|||||
|
Color Temperature |
5000—9300 adjustable |
|||||
|
Brightness Correction |
Pixel by pixel, module by module, cabinet by cabinet |
|||||
|
Reliability |
||||||
|
Working Temperature |
-20～+60 ºC |
|||||
|
Storage Temperature |
-30～+70 ºC |
|||||
|
Working Humidity |
10%～90% RH |
|||||
|
Lifetime |
100,000 hours |
|||||
|
MTBF |
5000 hours |
|||||
|
Continuous Operating Time |
≥72 hours |
|||||
|
Protection Grade |
IP65(front), IP54(rear) |
|||||
|
Out-of-Control Pixel Rate |
≤0.01% |
|||||
