P16 Low Power Consumption LED Display
| Model: EP16-O1L-1R1G1B20x20-L960H960 |
| Brightness:≥7630cd/㎡ |
| Refresh frequency: ≥3600Hz |
| Average Power 100w/sqm |
P16 Low Power Consumption LED Display
Product description: P16 Low Power Consumption LED Display- high power factor power supplier, high level IC Driver. make it high performance, 100w/sqm power consuming. Its Best solution for energy saving.
Features of P16 Low Power Consumption LED Display:
1. Optimized PCB Design, Make it more power efficiency.
2. Low Voltage Power supplier 2.8-3.8V, 0.9 Power Factor.
3. MBI5045 IC Driver, S-PWM technology, high color depth, and energy saving.
4. Average 100w for 1 sqm outdoor led display, 60% lower than traditional LED Display
Applications of P16 Low Power Consumption LED Display:

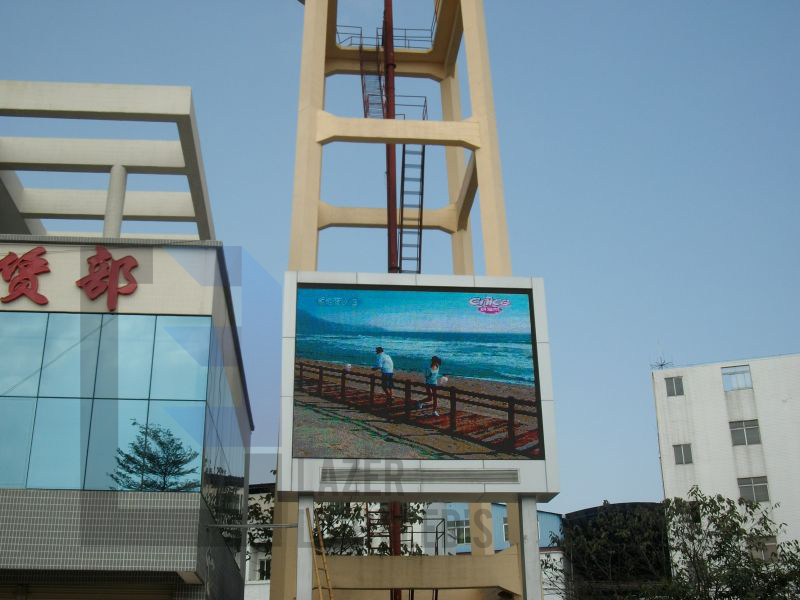

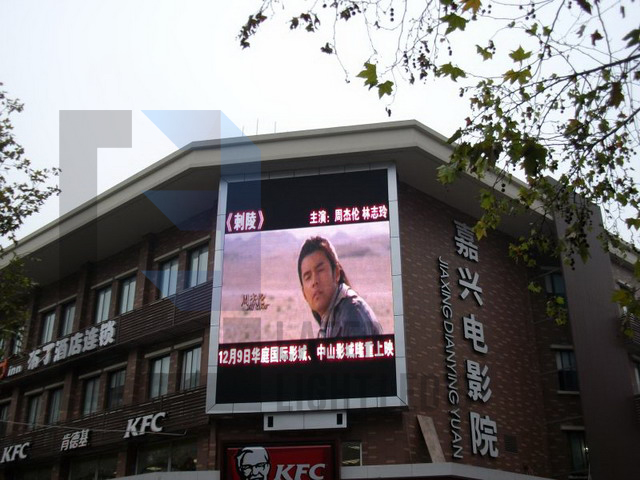

Outdoor Energy Saving LED Display, Low Power Consumption LED Display, Energy Efficient LED Display
Parameters of P16 Low Power Consumption LED Display:
|
Item |
Parameter |
Remark |
|
Pixel Pitch |
16mm |
|
|
Cabinet Material |
Steel/Aluminum |
|
|
Color |
Black/Grey/White |
|
|
Cabinet Size |
960*960 mm |
|
|
Cabinet Resolution |
96*96 pixels |
|
|

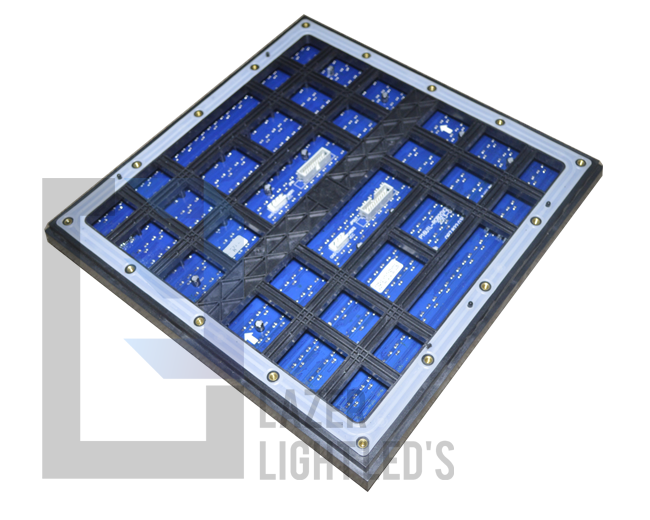

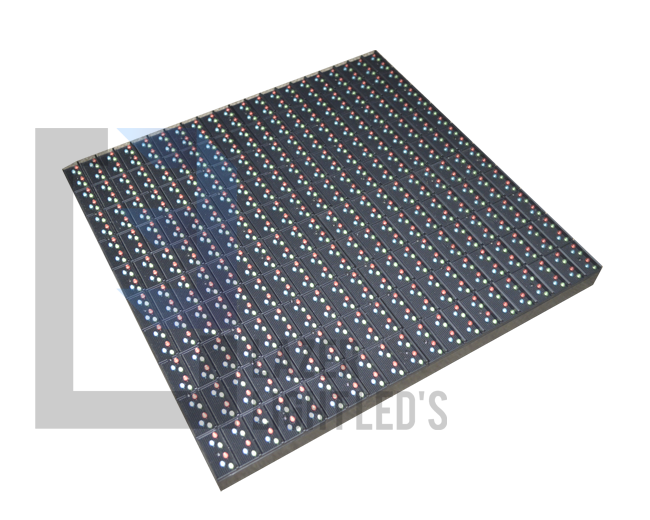

Module quantity |
3*3 |
|
|
Density |
3,906pixels/㎡ |
|
|
White balance brightness |
≥7,630CD/㎡ |
|
|
Color temperature |
6500K——8000K |
|
|
Viewing angle |
H:120;V:120 |
|
|
Protection grade |
Front/Rear:IP65/IP65 |
|
|
Non-Flatness |
＜1mm |
|
|
Module interval |
＜1mm |
|
|
Cabinet Weight |
47kg/Cabinet |
With power supply |
|
Packaging Gross Weight(KG) |
108kg(Estimated data) |
2pcs / Case |
|
Packaging dimension |
1020*368*1150mm(Estimated data) |
2pcs / Case |
|
Maximal power/㎡ |
264W/㎡ |
|
|
Average power/㎡ |
105W/㎡ |
|
|
Frame frequency |
≥60Hz |
|
|
Refresh frequency |
3000Hz |
Depending on the selected drive chip and control system |
|
Gray grade |
13bit |
|
|
Brightness adjusted |
256 grade by auto-optic/color &8 grade by hand |
|
|
Input signal |
RF,S-video,RGB,RGBHV,YUV,YC&Composition,etc |
|
|
Control system |
Novastar / Linsn / Colorlight |
|
|
System supports |
Windows XP,WIN 7 |
|
|
MTBF |
>5000h |
|
|
Life-span |
>100000h |
|
|
Speckles rate |
<0.0001 |
