P16-O1L-DIP346-16x16-L1024xH1024
| Model: P10-O4L-DIP346-16x16-L960xH960 |
| Brightness:≥7500cd/㎡ |
| Refresh frequency: ≥1920Hz |
| Gray Grade: 14 bits |

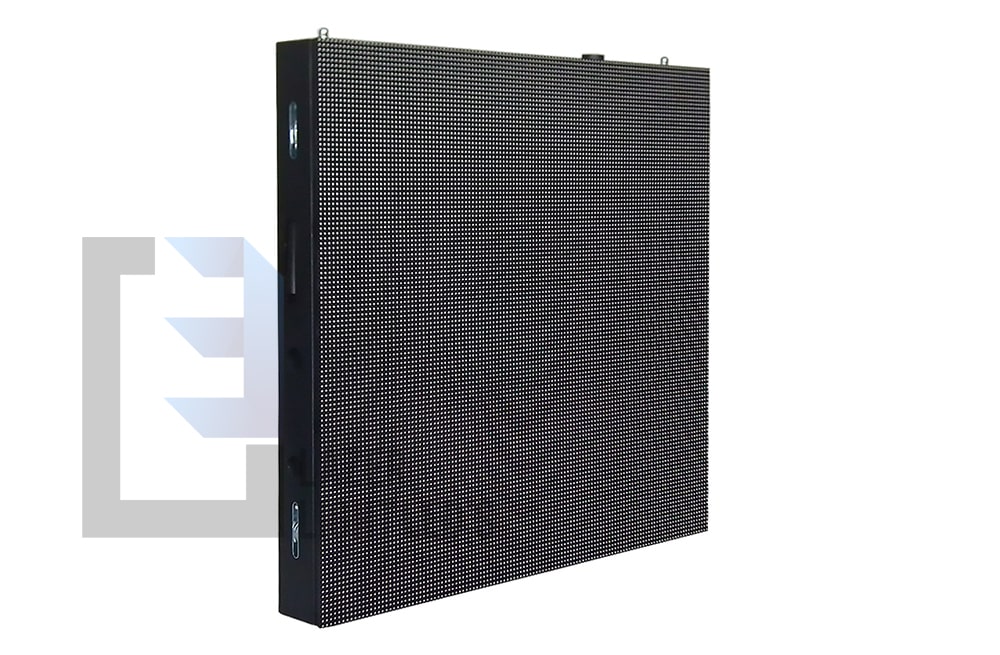

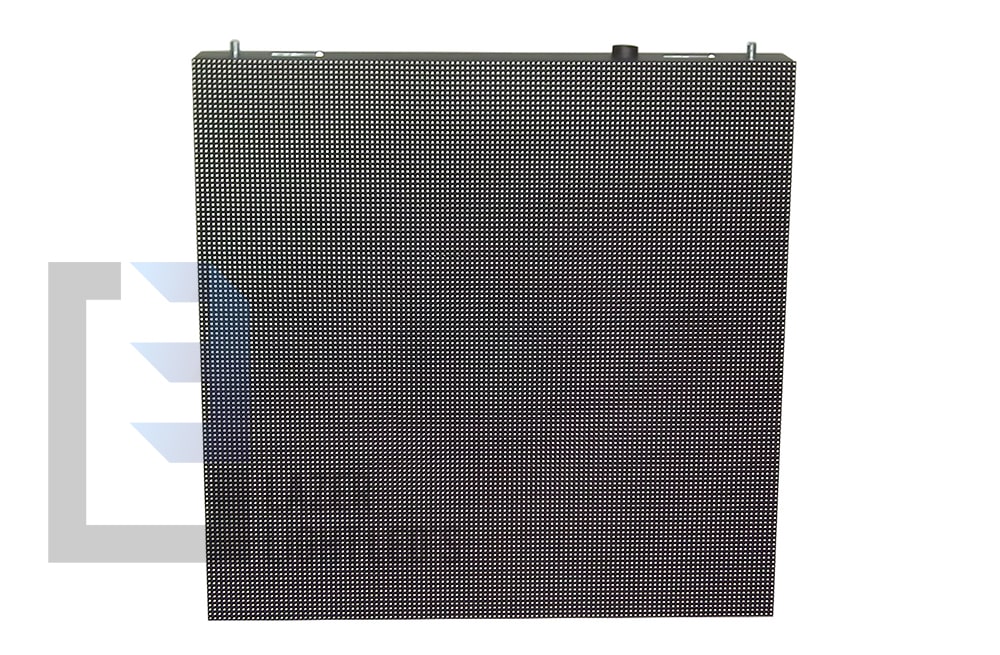

P16 RGB Outdoor Advertising LED Screen Panel
Product description: P16 RGB Outdoor Advertising LED Screen Panel ,1920Hz Refresh rate and 14 bit color depth , 7500cd/sqm brightness, fine display performance. Reliable quality, 2 year warranty.
P16 RGB Outdoor Advertising LED Screen Panel Features:
1) We use big size LED chip for the P16 LED screen. For example, when we use EPISTAR LED, we use 10x10 mil for red chip, 8x15mil for green chip and 9x12mil for blue chip.
2) LED chip is sorted within 2.5nm wave length and 10% color difference. Narrow wave length range and small color difference make perfect color uniformity and brightness conformity.
3) We use Meanwell power supply, which is a famous brand from Taiwan. We can also use other power supply brands which customers specify.

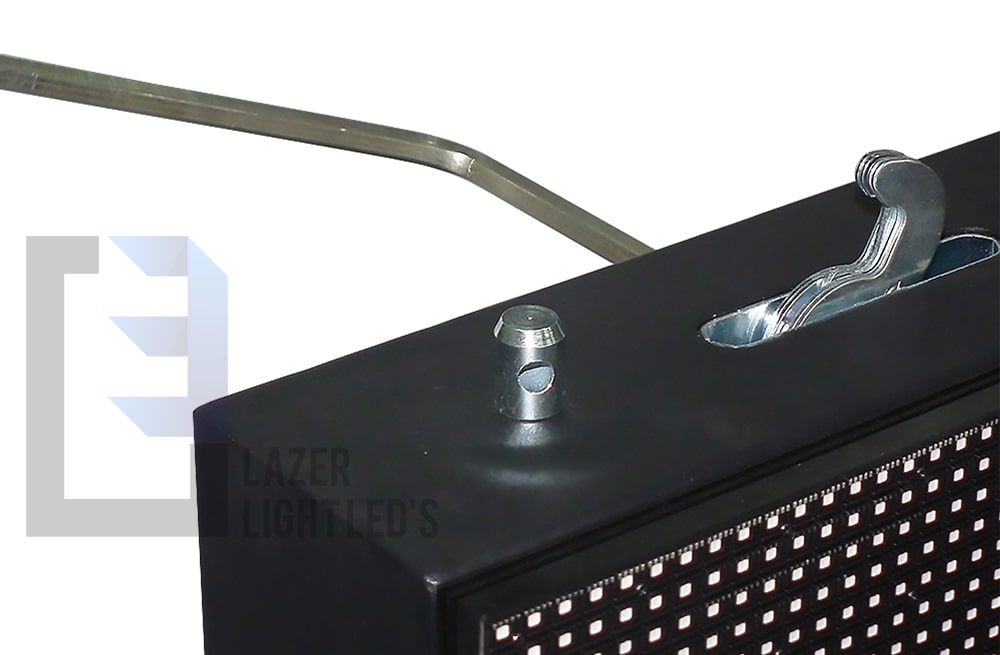

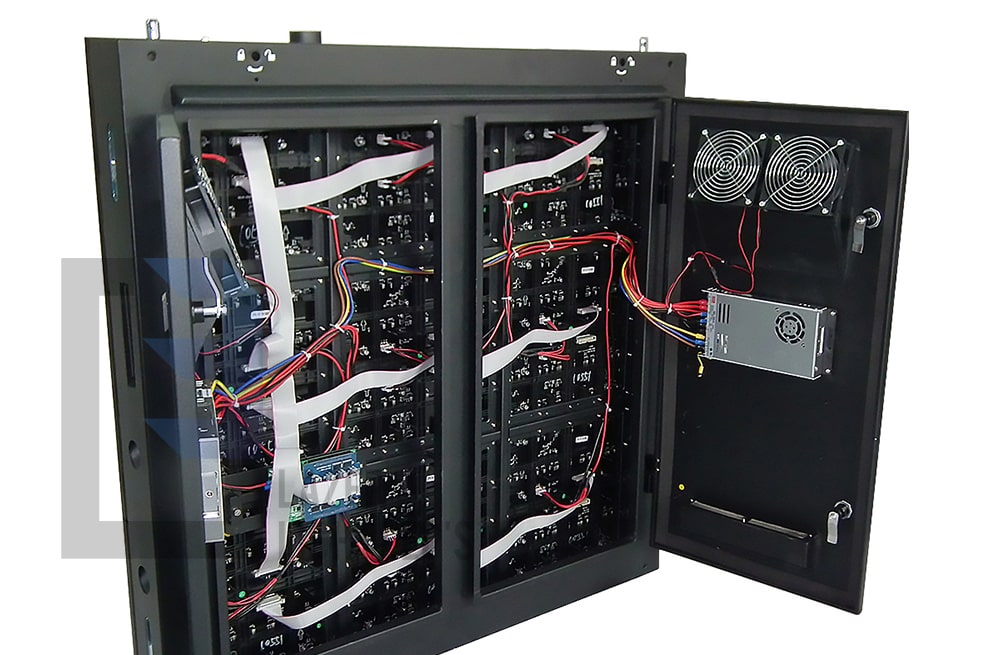

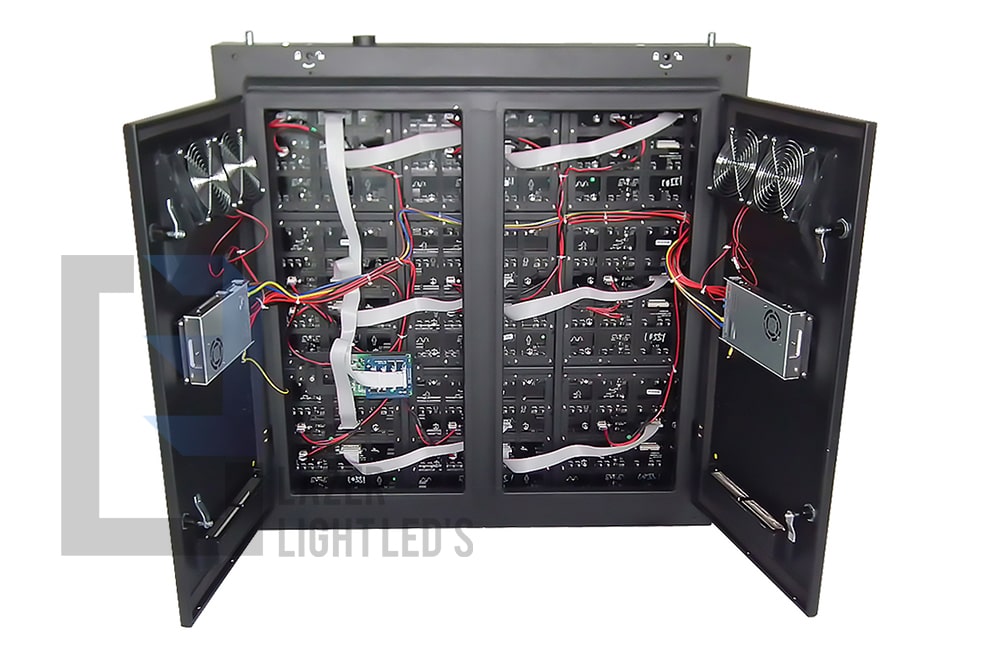

4) Cabinet is customized. We can make standard rear service cabinet, front open cabinet, curved cabinet, double face cabinet, etc.
5) Different control system to meet clients’ requirements. Synchronous or asynchronous. Different brands, such as LINSN, NOVASTAR, XIXUNand COLORLIGHT.
6) High cost performance for outdoor advertisement LED screen. Our company has strict purchasing management system and strict company management system, hence, low materials cost and company operation cost.
7) Long lifetime. The P16 LED screen can work for more than eight years in good conditions with little repair.
P16 RGB Outdoor Advertising LED Screen Panel Applications:

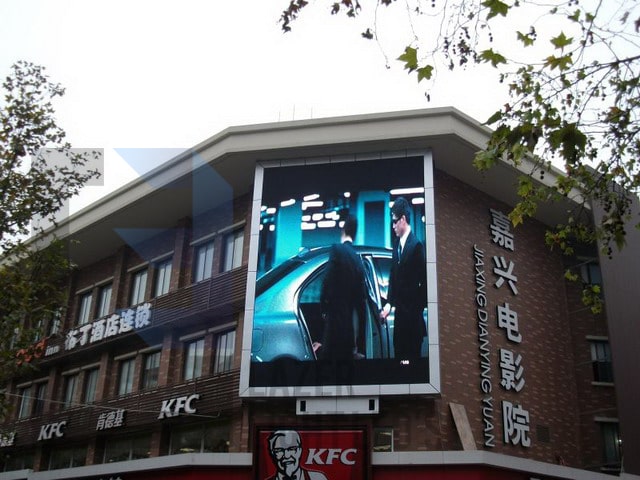

Outdoor commercial LED display, arc outdoor LED display, LED display on a trailer or truck, stadium perimeter LED display
P16 RGB Outdoor Advertising LED Screen Panel Specification:
|
LED Lamp Specification |
||||||
|
Color |
Package |
Intensity |
Viewing Angle |
Wavelength |
Testing Conditions |
|
|
Red |
DIP346 |
880-1220mcd |
105° |
620-625nm |
25℃,20mA |
|
|
Green |
DIP346 |
1900-2300mcd |
105° |
522-525nm |
25℃,20mA |
|
|
Blue |
DIP346 |
450-650mcd |
105° |
468-470nm |
25℃,20mA |
|
|
Module Parameter |
||||||
|
Pixel Pitch |
16mm |
|||||
|
Pixel Configuration |
DIP346 |
|||||
|
Density |
3,906pixels/㎡ |
|||||
|
Module Resolution |
16pixel(L) *16pixel(H) |
|||||
|
Module Dimension |
256mm(L) * 256mm(H) * 30mm(D) |
|||||
|
Driving Mode |
Constant current, 1/1 duty |
|||||
|
Module Mask |
Pure black mask---high contrast screen |
|||||
|
LED Cabinet |
||||||
|
Module Quantity in a Cabinet |
4(L) *4(H) |
|||||
|
Cabinet Dimension |
1024（L）*1024（H）* 150(D)mm |
|||||
|
Cabinet Resolution |
64(L) *64(H) |
|||||
|
Cabinet Material |
Steel |
|||||
|
Cabinet Weight |
≈52KG |
|||||
|
Electricity Parameter |
||||||
|
Optical Ratings |
||||||
|
Brightness |
≥7,500 cd/㎡ |
|||||
|
Viewing Angle |
90°(Horizontal)； 90°(Vertical) |
|||||
|
Best Viewing Distance |
≥16m |
|||||
|
Gray Grade |
14 bits |
|||||
|
Display Color |
4.4 trillion Colors |
|||||
|
Brightness Adjustment |
100 grades by software or automatically by sensor |
|||||
|
Operation Power |
AC100-240V 50-60Hz Switchable |
|||||
|
Max. Power Consumption |
750 W/㎡ |
|||||
|
Avg. Power Consumption |
250W/㎡ |
|||||
|
control system |
||||||
|
Frame Frequency |
≥60Hz |
|||||
|
Refresh Frequency |
≥1,920Hz |
|||||
|
Input Signal |
Composite Video, S-video, DVI, HDMI, SDI, HD-SDI |
|||||
|
Control Distance |
100m(Ethernet cable); 20KM(optical fiber cable) |
|||||
|
Support VGA Mode |
800*600, 1024*768, 1280*1024, 1600*1200 |
|||||
|
Color Temperature |
5000—9300 adjustable |
|||||
|
Brightness Correction |
Pixel by pixel, module by module, cabinet by cabinet |
|||||
|
Reliability |
||||||
|
Working Temperature |
-20～+60 ºC |
|||||
|
Storage Temperature |
-30～+70 ºC |
|||||
|
Working Humidity |
10%～90% RH |
|||||
|
Lifetime |
100,000 hours |
|||||
|
MTBF |
5000 hours |
|||||
|
Continuous Operating Time |
≥72 hours |
|||||
|
Protection Grade |
IP65(front), IP54(rear) |
|||||
|
Out-of-Control Pixel Rate |
≤0.01% |
|||||
