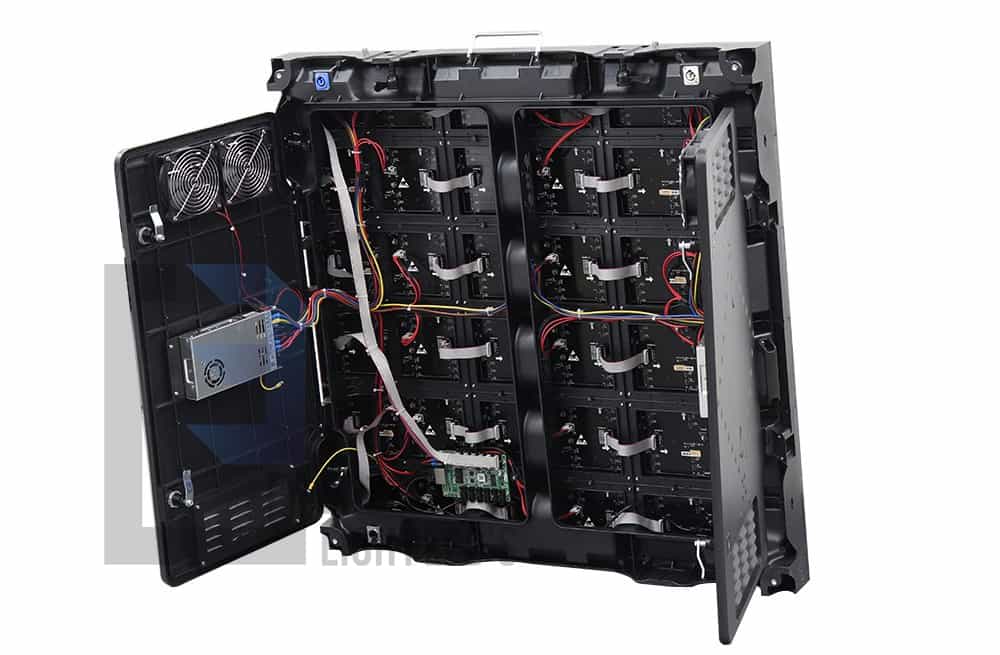

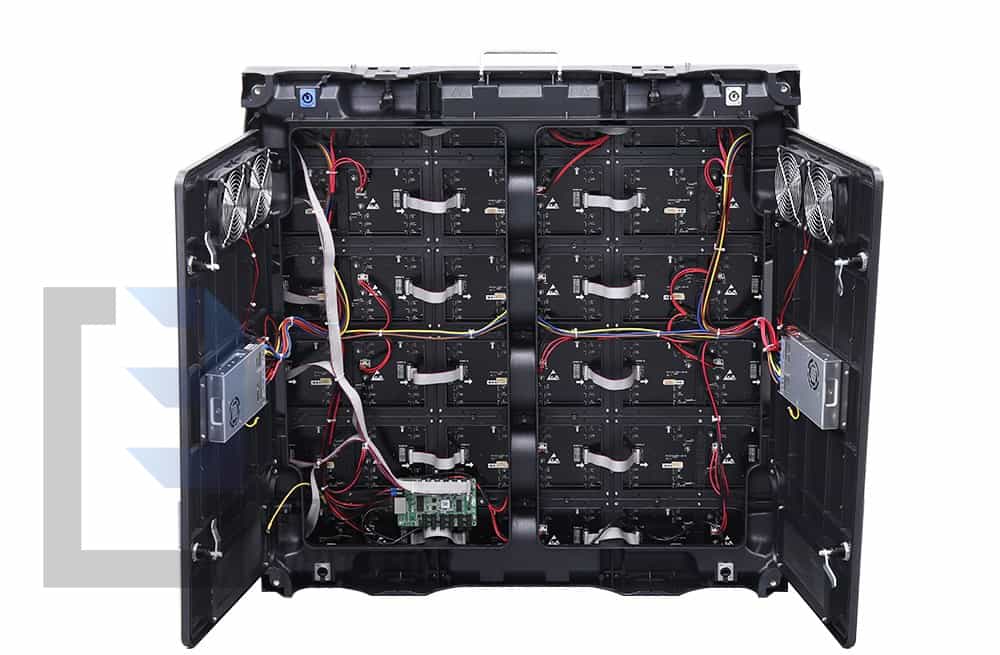

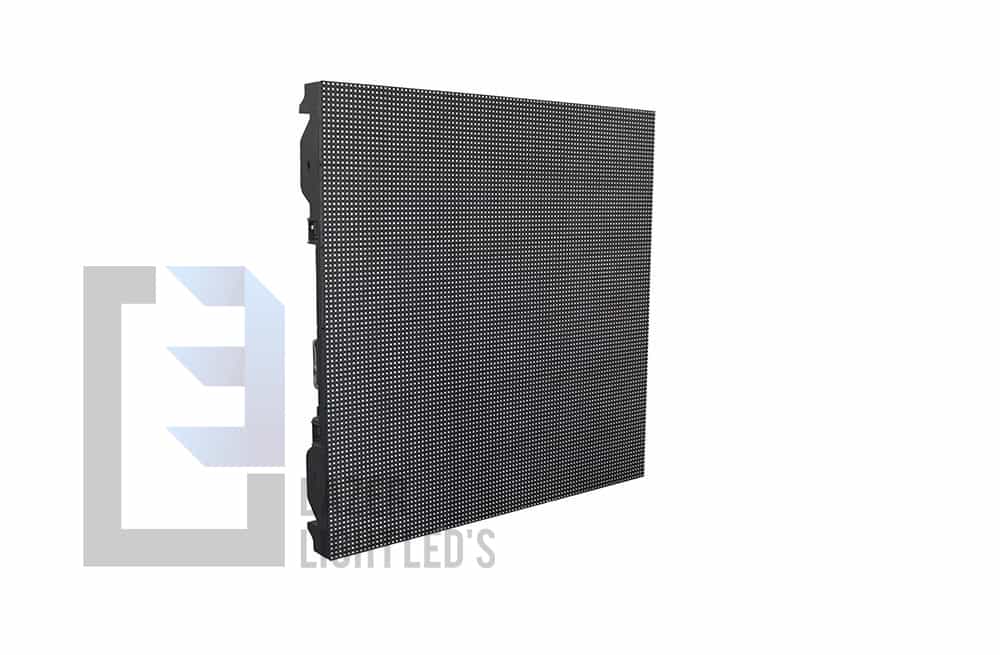

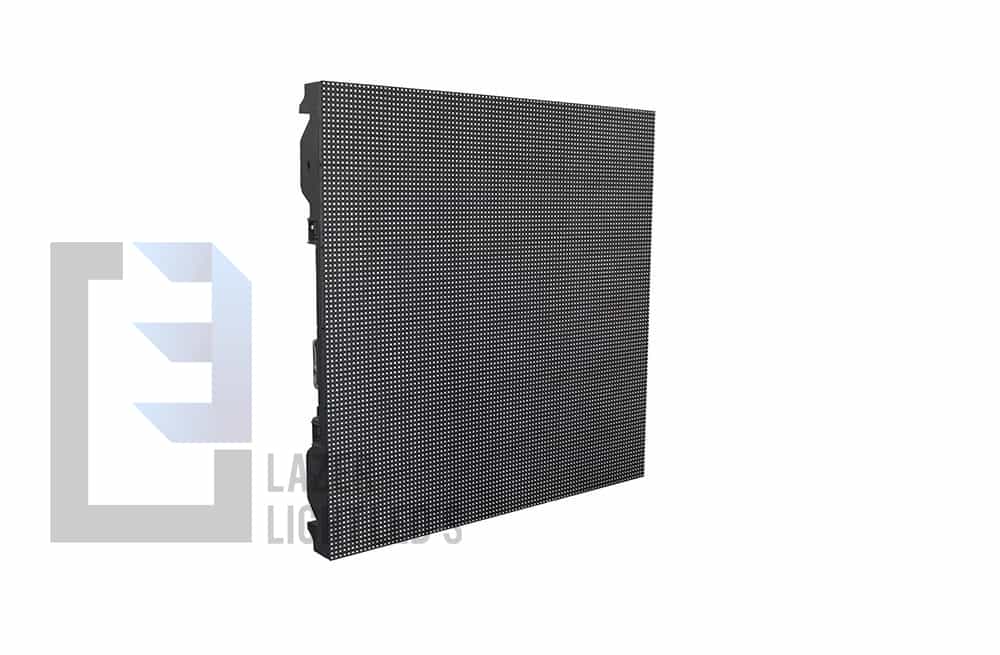

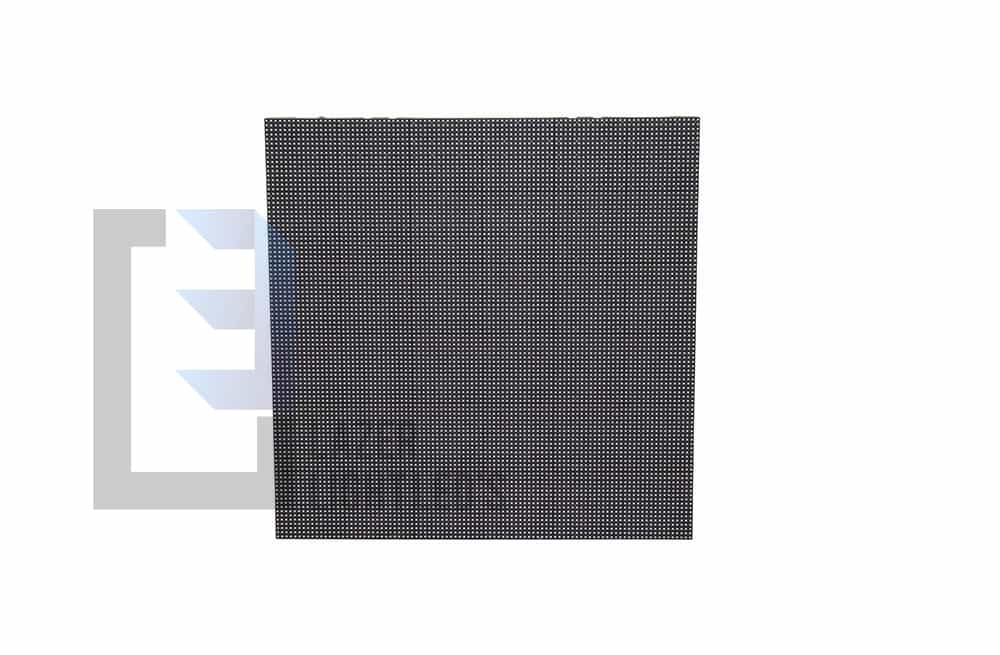

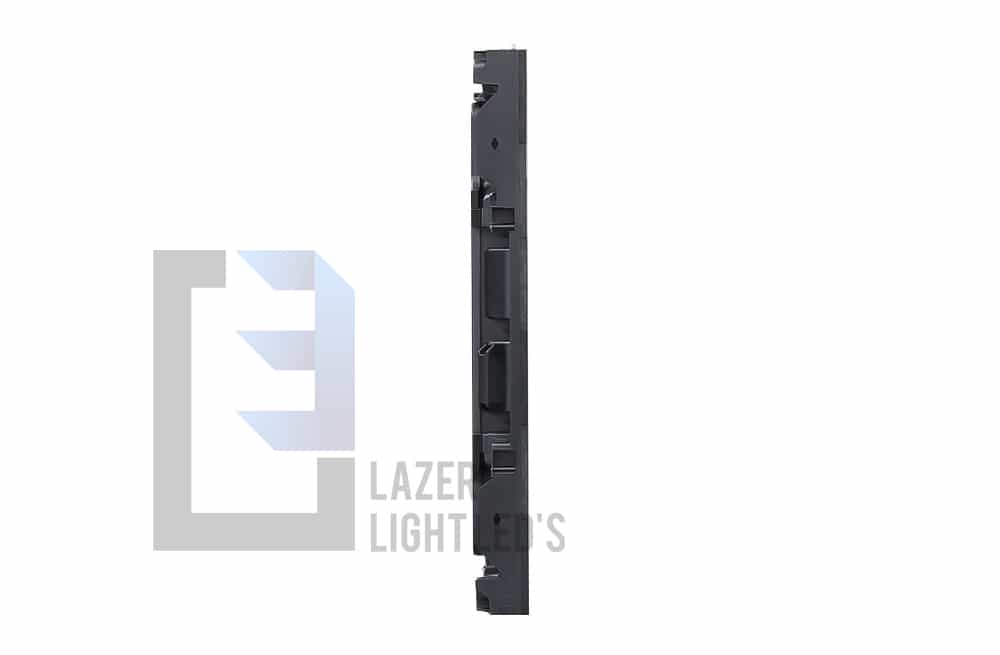

P10 Indoor SMD3528 960x960mm Die-cast Fixed Installation LED Panel For Wall
| Model: P10-IC4S-SMD3528-32x16-L960xH960 |
| Brightness: ≥1600CD/㎡ |
| Refresh frequency: ≥1800Hz |
| Viewing angle: 120° |
Product description: Product description: P10 SMD3528 indoor commercial LED display board, high brightness, high refresh frequency, low attenuation, high reliability, good consistency, non-mosaic phenomenon.
P10 Indoor SMD3528 960x960mm Die-cast Fixed Installation LED Panel For Wall Features:
1) Wide viewing angles. Both the horizontal viewing angle and vertical viewing angle can reach 120 degrees.
2) Good color and brightness conformity. The LED chip is sorted by 2.5nm, while the chip brightness
difference is within 10%.
4) Different cabinet styles are available, such as fixed installation style, rental hanging style, ultra-thin style。
P10 Indoor SMD3528 960x960mm Die-cast Fixed Installation LED Panel For Wall Applications:
indoor Rental LED Screen
Indoor commercial LED screen
Indoor stage background LED curtain
P10 Indoor SMD3528 960x960mm Die-cast Fixed Installation LED Panel For Wall Parameter:
| Module Parameter | |
| Pixel Pitch | 10mm |
| Pixel Configuration | SMD3528 |
| Density | 10,000 pixels/㎡ |
| Module Resolution | 32pixel(L) * 16pixel(H) |
| Module Dimension | 320mm(L) *160mm(H) * 18mm(D) |
| Driving Mode | Constant current, 1/4 duty |
| Module Mask | Pure black mask---high contrast screen |
| Electricity Parameter | |
| Optical Ratings | |
| Brightness | ≥1,600 cd/㎡ |
| Viewing Angle | 120°(Horizontal)； 120°(Vertical) |
| Best Viewing Distance | ≥10m |
| Gray Grade | 14 bits |
| Display Color | 4.4 trillion colors |
| Brightness Adjustment | 100 grades by software or automatically by sensor |
| Max. Power Consumption | 23W |
| control system | |
| Frame Frequency | ≥60Hz |
| Refresh Frequency | ≥1,920Hz |
| Input Signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI |
| Control Distance | 100m(Ethernet cable); |
| 20KM(optical fiber cable) | |
| Support VGA Mode | 800*600, 1024*768, 1280*1024, 1600*1200 |
| Color Temperature | 5000—9300 adjustable |
| Brightness Correction | Pixel by pixel, module by module, cabinet by cabinet |
| Reliability | |
| Working Temperature | -20～+60 ºC |
| Storage Temperature | -30～+70 ºC |
| Working Humidity | 10%～90% RH |
| Lifetime | 100,000 hours |
| MTBF | 5000 hours |
| Continuous Operating Time | ≥72 hours |
| Protection Grade | IP31 |
| Out-of-Control Pixel Rate | ≤0.01% |
