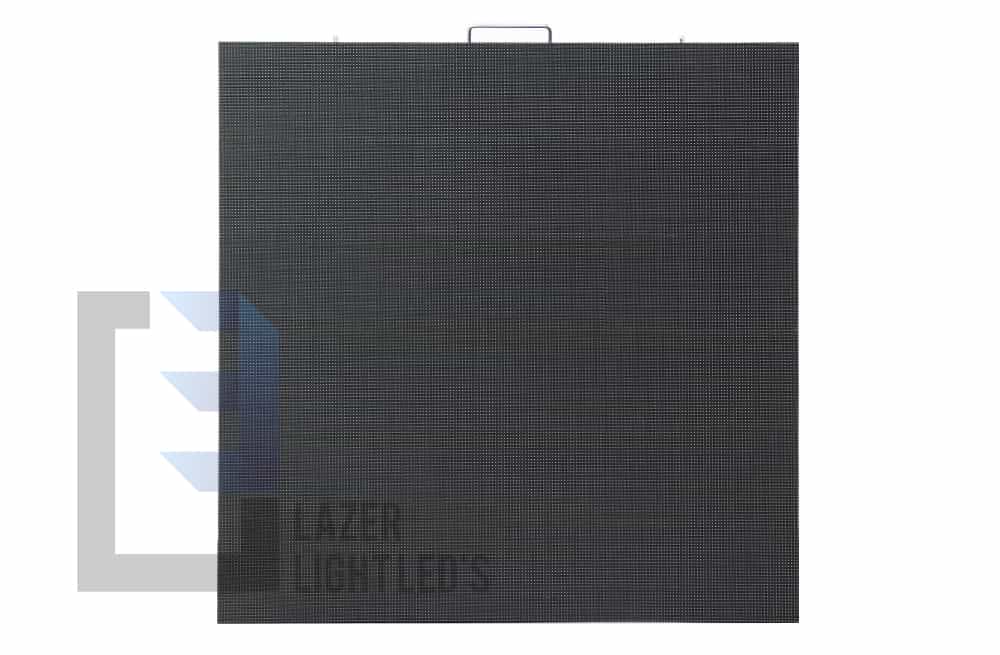

P6 Indoor LED Display Screen
| Model: P6-I16S-SMD3528-32x32-L768xH768 |
| Brightness:≥1100CD/㎡ |
| Refresh frequency: ≥1920Hz |
| Gray Grade14 bits |
Product description: P6 SMD3528 indoor commercial LED display board, high brightness, high refresh frequency, low attenuation, high reliability, good consistency.
P6 Indoor LED Display Screen Features:
1) Wide viewing angles. Both the horizontal viewing angle and vertical viewing angle can reach 120 degrees.
2) Good color and brightness conformity. The LED chip is sorted by 2.5nm, while the chip brightness
difference is within 10%.
4) Different cabinet styles are available, such as fixed installation style, rental hanging style, ultra-thin style, front-maintained style and front-serviceable style with magnets.
P6 Indoor LED Display Screen Applications:
Indoor commercial LED screen
Indoor advertising LED display screen
Indoor full color LED Moving signs
P6 Indoor LED Display Screen Specification:
|
LED Lamp Specification |
||||||
|
Color |
Package |
Intensity |
Viewing Angle |
Wavelength |
Testing Conditions |
|
|
Red |
SMD3528 |
300mcd |
120° |
622nm |
25℃,20mA |
|
|
Green |
SMD3528 |
600mcd |
120° |
523nm |
25℃,12mA |
|
|
Blue |
SMD3528 |
140mcd |
120° |
470nm |
25℃,12mA |
|
|
Module Parameter |
||||||
|
Pixel Pitch |
6mm |
|||||
|
Pixel Configuration |
SMD3528 |
|||||
|
Density |
27,778 pixels/㎡ |
|||||
|
Module Resolution |
32pixel(L) *32pixel(H) |
|||||
|
Module Dimension |
192mm(L) * 192mm(H) * 18mm(D) |
|||||
|
Driving Mode |
Constant current, 1/16 duty |
|||||
|
Module Mask |
Pure black mask---high contrast screen |
|||||
|

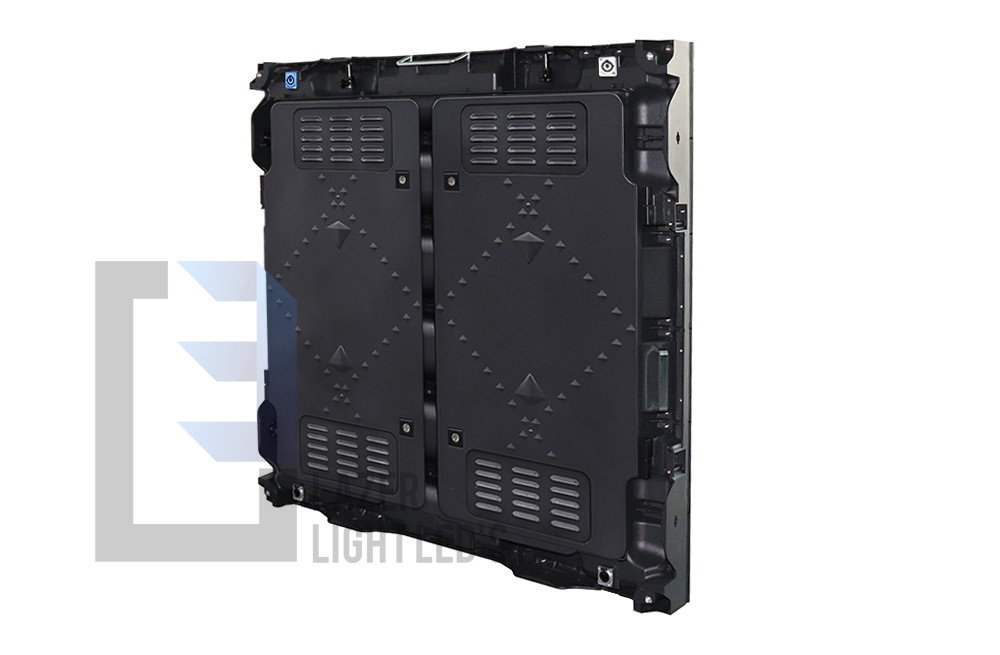

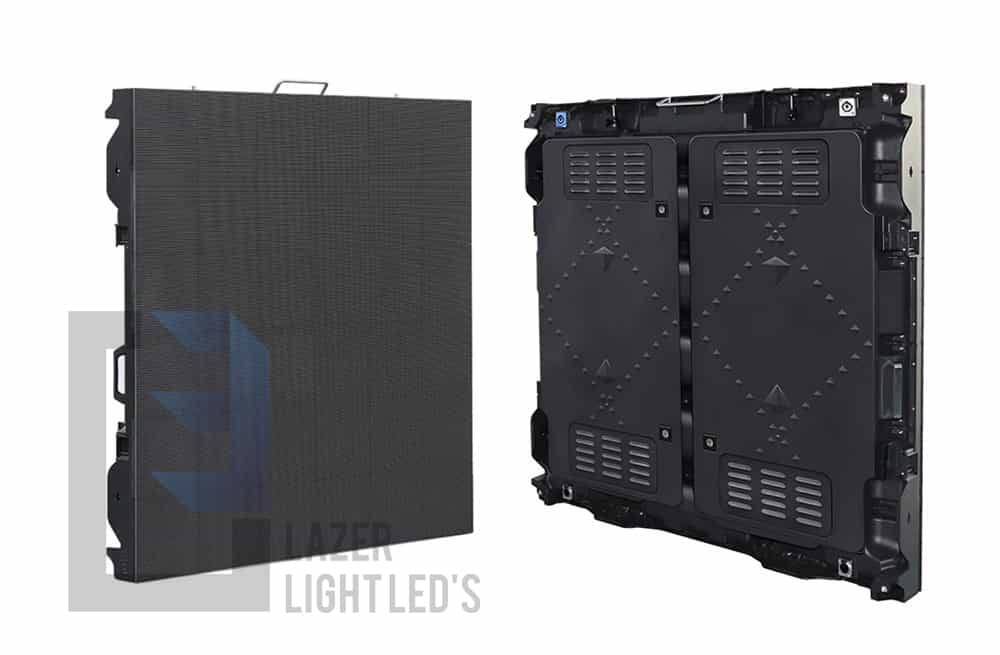

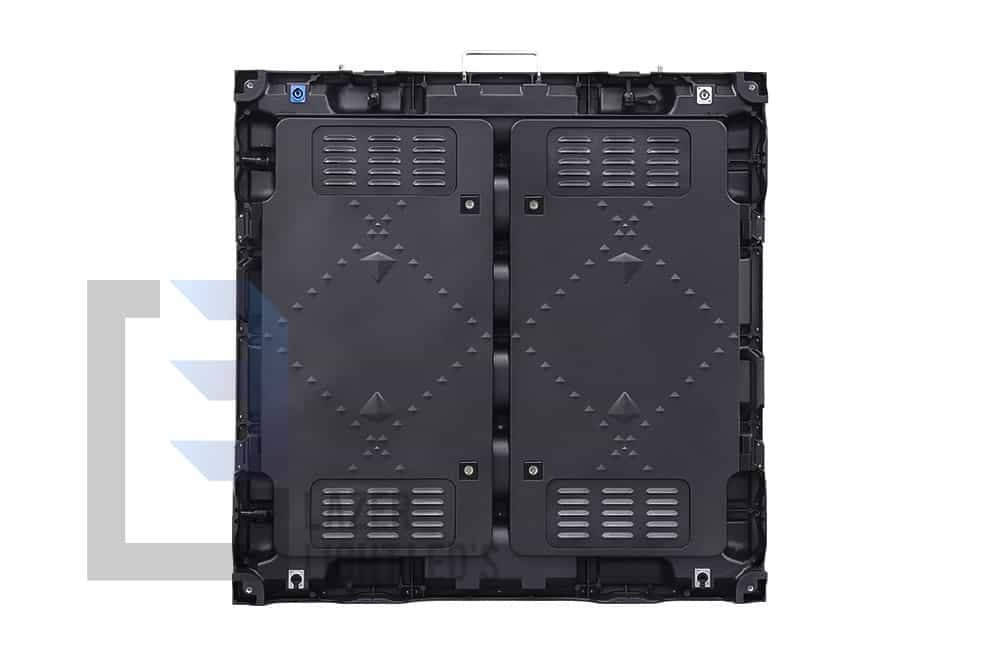

LED Cabinet |
||||||
|

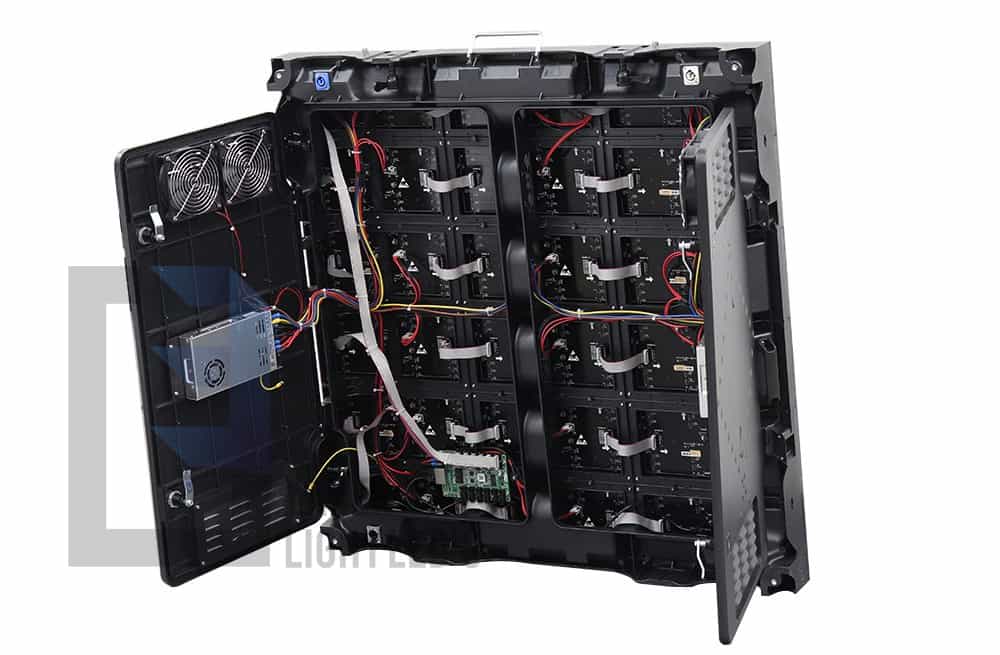

Module Quantity in a Cabinet |
4(L) * 4(H) |
|||||
|
Cabinet Dimension |
768（L）*768（H）* 90(D)mm |
|||||
|
Cabinet Resolution |
128(L) * 128(H) |
|||||
|
Cabinet Material |
Steel |
|||||
|
Cabinet Weight |
≈21KG |
|||||
|
Electricity Parameter |
||||||
|
Optical Ratings |
||||||
|
Brightness |
≥1,100 cd/㎡ |
|||||
|
Viewing Angle |
120°(Horizontal)； 120°(Vertical) |
|||||
|
Best Viewing Distance |
≥6m |
|||||
|
Gray Grade |
14 bits |
|||||
|
Display Color |
4.4 trillion Colors |
|||||
|
Brightness Adjustment |
100 grades by software or automatically by sensor |
|||||
|
Operation Power |
AC100-240V 50-60Hz Switchable |
|||||
|
Max. Power Consumption |
420 W/㎡ |
|||||
|
Avg. Power Consumption |
140W/㎡ |
|||||
|
control system |
||||||
|
Frame Frequency |
≥60Hz |
|||||
|
Refresh Frequency |
≥1,920Hz |
|||||
|
Input Signal |
Composite Video, S-video, DVI, HDMI, SDI, HD-SDI |
|||||
|
Control Distance |
100m(Ethernet cable); 20KM(optical fiber cable) |
|||||
|
Support VGA Mode |
800*600, 1024*768, 1280*1024, 1600*1200 |
|||||
|
Color Temperature |
5000—9300 adjustable |
|||||
|
Brightness Correction |
Pixel by pixel, module by module, cabinet by cabinet |
|||||
|
Reliability |
||||||
|
Working Temperature |
-20～+60 ºC |
|||||
|
Storage Temperature |
-30～+70 ºC |
|||||
|
Working Humidity |
10%～90% RH |
|||||
|
Lifetime |
100,000 hours |
|||||
|
MTBF |
5000 hours |
|||||
|
Continuous Operating Time |
≥72 hours |
|||||
|
Protection Grade |
IP31 |
|||||
|
Out-of-Control Pixel Rate |
≤0.01% |
|||||
