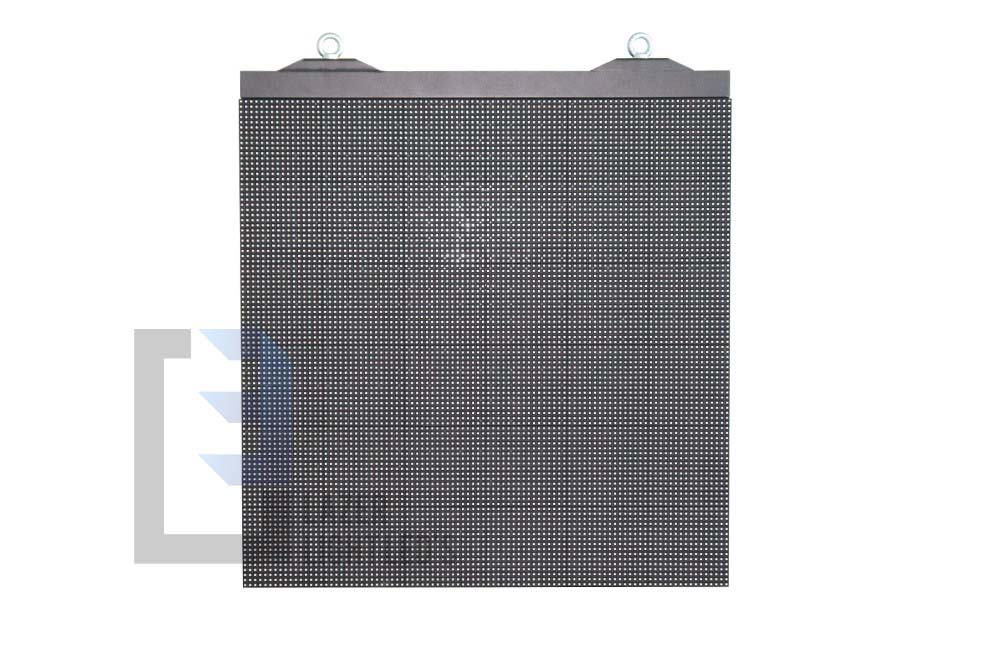

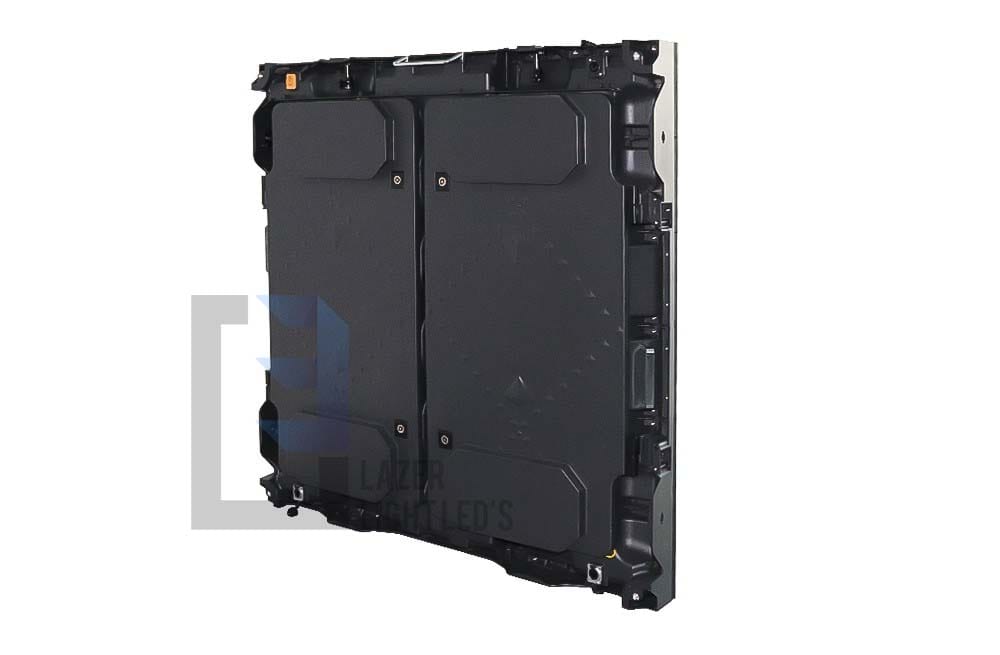

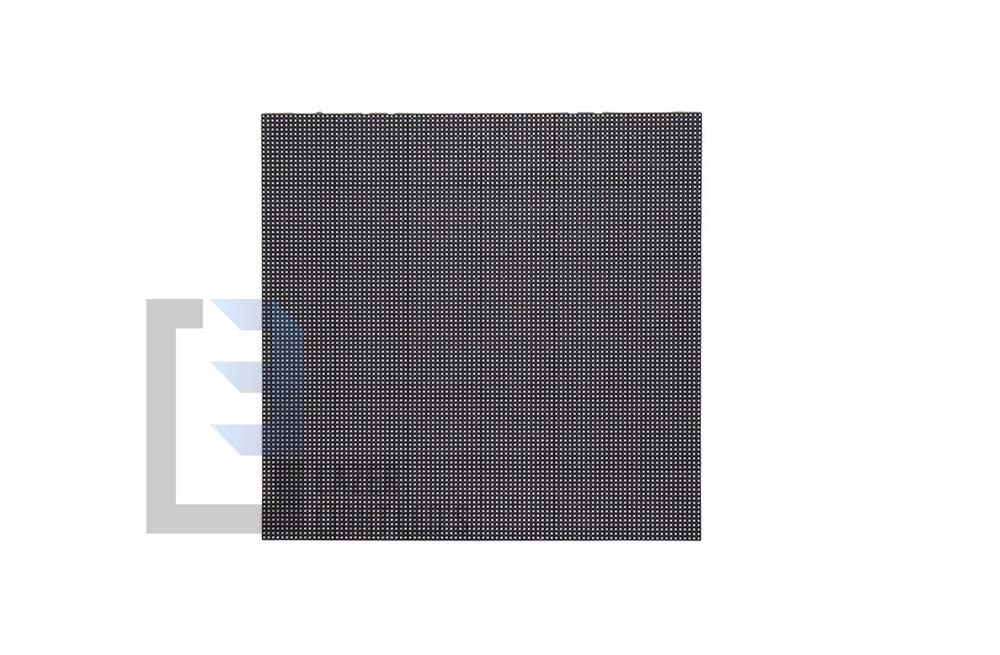

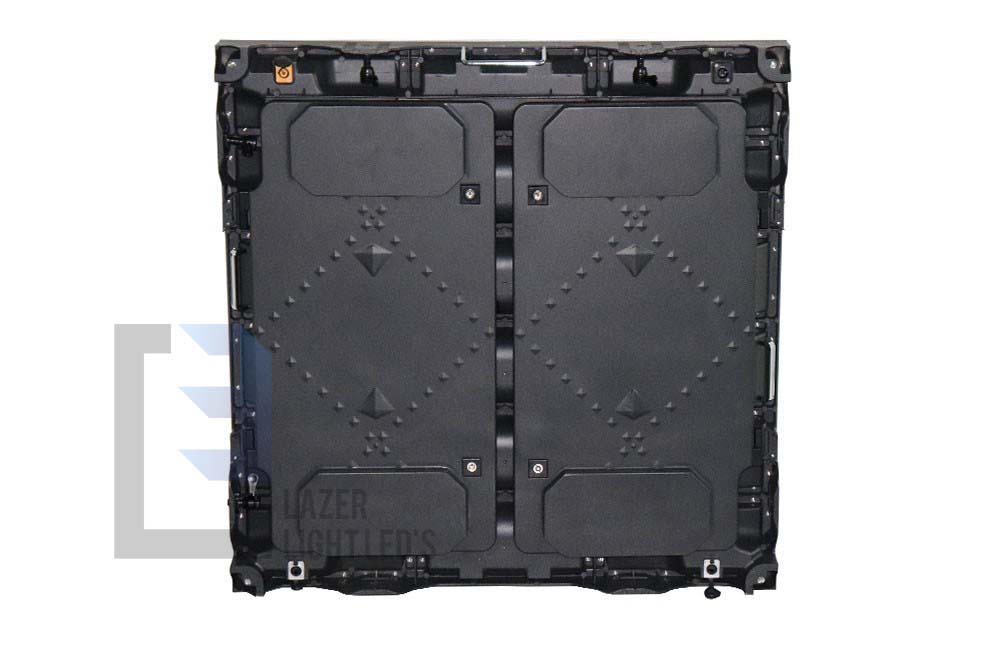

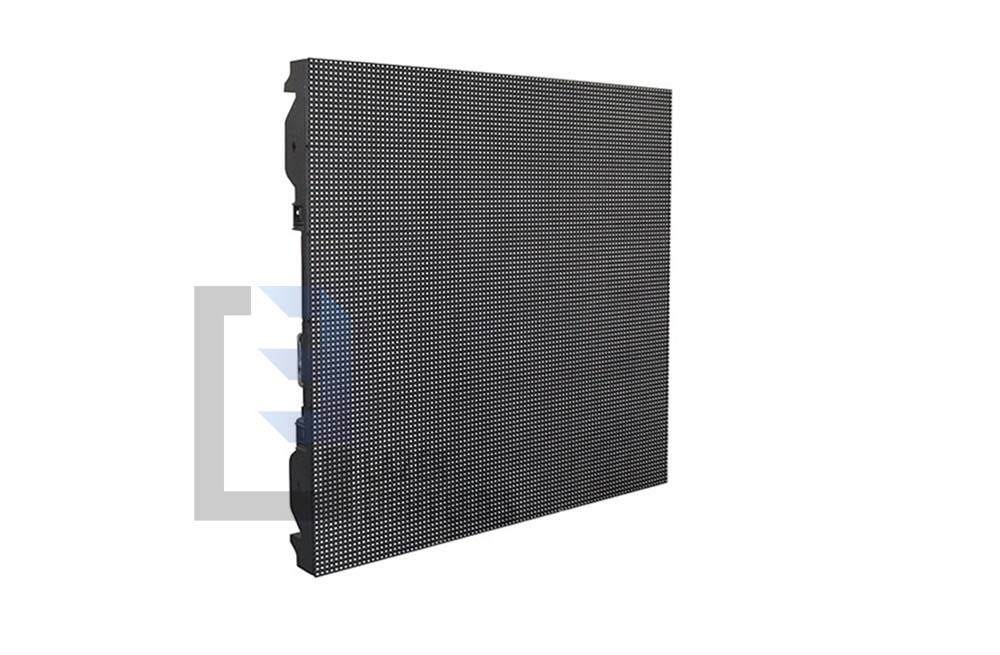

P10 2S Outdoor SMD3535 960x960mm Die-cast Fixed installation LED Panel Screen
| Model: P10-OC2S-SMD3535-32x16-L960xH960 |
| Brightness: ≥7500CD/㎡ |
| Refresh frequency: ≥1920Hz |
| Viewing angle: 120° |
Product description: Product description: P10 SMD3535 outdoor commercial LED display board, high brightness, high refresh frequency, low attenuation, high reliability, good consistency, non-mosaic phenomenon.
P10 2S Outdoor SMD3535 960x960mm Die-cast Fixed installation LED Panel Screen Features:
1) Wide viewing angles. Both the horizontal viewing angle and vertical viewing angle can reach 120 degrees.
2) Good color and brightness conformity. The LED chip is sorted by 2.5nm, while the chip brightness
difference is within 10%.
4) High Level waterproof level which is suit for outdoor fixed installation.
5)1920HZ refresh rate, 14bit color depth 10,000 pixel/sqm.
6) Easy to move and install .
P10 2S Outdoor SMD3535 960x960mm Die-cast Fixed installation LED Panel Screen Applications:
Exterior advertising LED display
Exterior rental LED display
P10 2S Outdoor SMD3535 960x960mm Die-cast Fixed installation LED Panel Screen Parameter:
| Module Parameter | |
| Pixel Pitch | 10mm |
| Pixel Configuration | SMD3535 |
| Density | 10,000 pixels/㎡ |
| Module Resolution | 32pixel(L) * 16pixel(H) |
| Module Dimension | 320mm(L) * 160mm(H) * 25mm(D) |
| Driving Mode | Constant current, 1/2 duty |
| Module Mask | Pure black mask---high contrast screen |
| LED Cabinet | |
| Module Quantity in a Cabinet | 3(L) * 6(H) |
| Cabinet Dimension | 960（L）* 960（H）* 144(D)mm |
| Cabinet Resolution | 96(L) * 96(H) |
| Cabinet Material | Die-Cast magnesium alloy |
| Cabinet Weight | ≈36.5KG |
| Electricity Parameter | |
| Optical Ratings | |
| Brightness | ≥7,500 cd/㎡ |
| Viewing Angle | 120°(Horizontal); 120°(Vertical) |
| Best Viewing Distance | ≥10m |
| Gray Grade | 14 bits |
| Display Color | 4.4 trillion Colors |
| Brightness Adjustment | 100 grades by software or automatically by sensor |
| Operation Power | AC100-240V 50-60Hz Switchable |
| Max. Power Consumption | 975W/㎡ |
| Avg. Power Consumption | 325W/㎡ |
| control system | |
| Frame Frequency | ≥60Hz |
| Refresh Frequency | ≥1,920Hz |
| Input Signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI |
| Control Distance | 100m(Ethernet cable); |
| 20KM(optical fiber cable) | |
| Support VGA Mode | 800*600, 1024*768, 1280*1024, 1600*1200 |
| Color Temperature | 5000—9300 adjustable |
| Brightness Correction | Pixel by pixel, module by module, cabinet by cabinet |
| Reliability | |
| Working Temperature | -20～+60 ºC |
| Storage Temperature | -30～+70 ºC |
| Working Humidity | 10%～90% RH |
| Lifetime | 100,000 hours |
| MTBF | 5000 hours |
| Continuous Operating Time | ≥72 hours |
| Protection Grade | IP65(front), IP54(rear) |
| Out-of-Control Pixel Rate | ≤0.01% |
