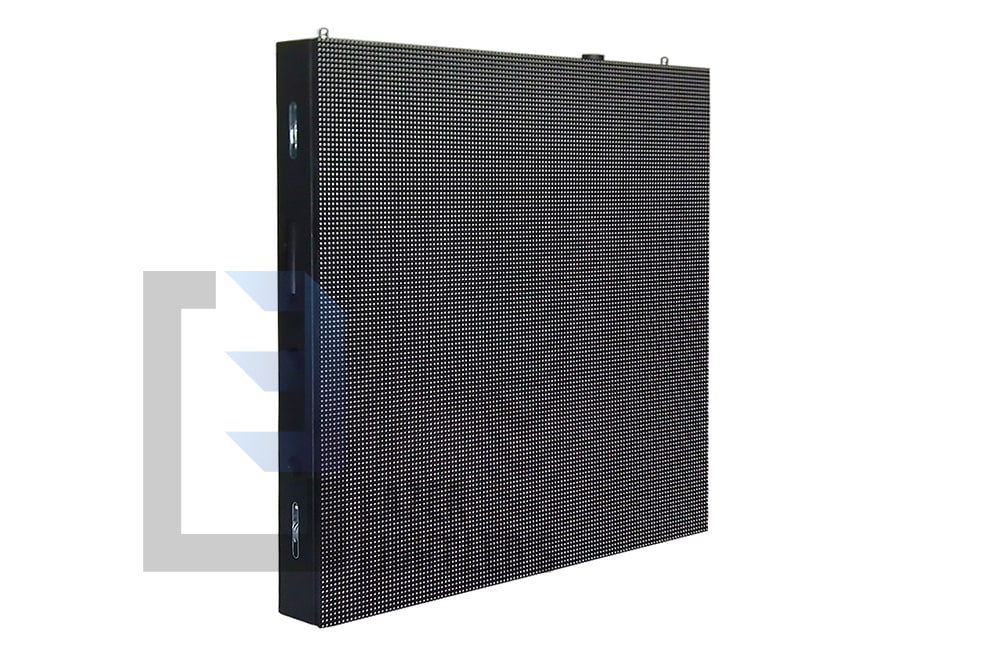

P4 Outdoor HD Advertising LED Display Screen
| Model: P4-OC10S-SMD1921-80x40-L960xH960 |
| Brightness: ≥6000CD/㎡ |
| Refresh frequency: ≥1920Hz |
| Gray Grade: 14 bits |
Product description: P4 Outdoor HD Advertising LED Display Screen, 512x512mm cabinet, 1920HZ refresh rate, 14bit color depth, 62,500 pixel/sqm, outdoor high definition LED display screen.
P4 Outdoor HD advertising LED display Screen Features:
1) Adopting SMD2525 LED from Kinglight, ensuring high quality for the whole LED screen.
2) Perfect design of PCB,good heat emission capability,hence,stability of the P5 SMD2525 LED module.
4) 4mm pixel pitch is suitable for outside commercial LED display and rental LED display.
5) New plastic cover with new mold, smaller module gaps and better screen flatness.
6) Customized cabinet design,support all kinds of control system,LINSN, NOVASTAR,Colorlight, XIXUN,etc.
P4 Outdoor HD advertising LED display Screen Applications:
Exterior advertising LED display
Exterior rental LED display
P4 Outdoor HD advertising LED display Screen Specification:
|
LED Lamp Specification |
||||||
|
Color |
Package |
Intensity |
Viewing Angle |
Wavelength |
Testing Conditions |
|
|
Red |
SMD2525 |
450-600mcd |
120° |
620-625nm |
25℃,20mA |
|
|
Green |
SMD2525 |
1000-1400mcd |
120° |
516-530nm |
25℃,20mA |
|
|
Blue |
SMD2525 |
200-400mcd |
120° |
465-475nm |
25℃,20mA |
|
|
Module Parameter |
||||||
|
Pixel Pitch |
4mm |
|||||
|
Pixel Configuration |
SMD2525 |
|||||
|
Density |
62,500 pixels/㎡ |
|||||
|
Module Resolution |
64pixel(L) * 32pixel(H) |
|||||
|
Module Dimension |
256mm(L) * 128mm(H) * 25mm(D) |
|||||
|
Driving Mode |
Constant current, 1/8 duty |
|||||
|
Module Mask |
Pure black mask---high contrast screen |
|||||
|

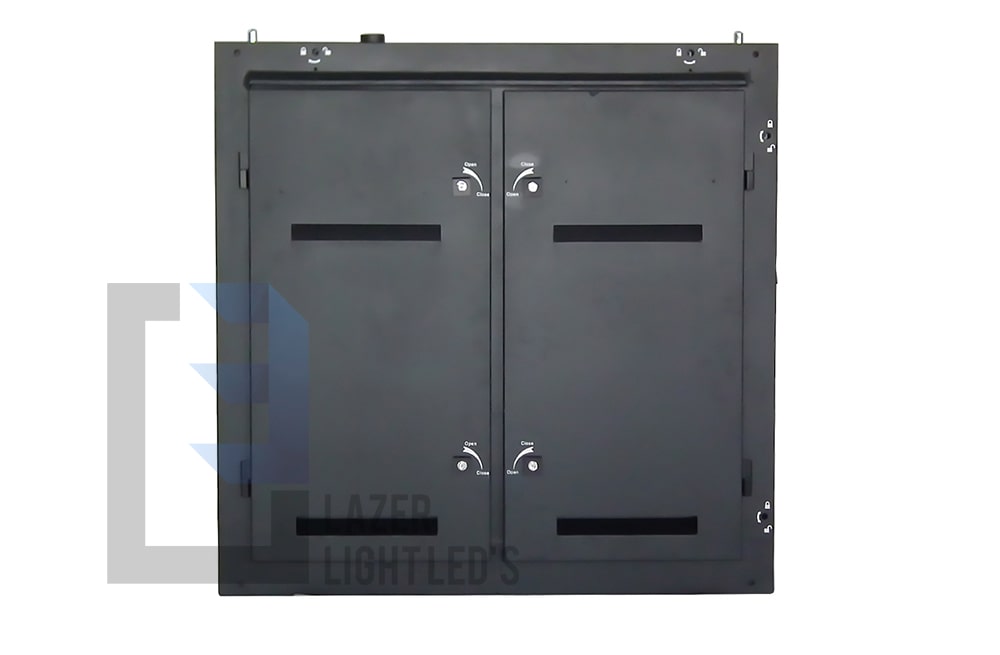

LED Cabinet |
||||||
|
Module Quantity in a Cabinet |
2(L) * 4(H) |
|||||
|
Cabinet Dimension |
512（L）* 512（H）* 150(D)mm |
|||||
|
Cabinet Resolution |
128(L) * 128(H) |
|||||
|
Cabinet Material |
Steel |
|||||
|
Cabinet Weight |
≈11KG |
|||||
|
Electricity Parameter |
||||||
|
Optical Ratings |
||||||
|
Brightness |
≥6,000 cd/㎡ |
|||||
|
Viewing Angle |
120°(Horizontal)； 120°(Vertical) |
|||||
|
Best Viewing Distance |
≥4m |
|||||
|
Gray Grade |
14 bits |
|||||
|
Display Color |
4.4 trillion Colors |
|||||
|
Brightness Adjustment |
100 grades by software or automatically by sensor |
|||||
|
Operation Power |
AC100-240V 50-60Hz Switchable |
|||||
|
Max. Power Consumption |
900 W/㎡ |
|||||
|
Avg. Power Consumption |
300W/㎡ |
|||||
|
control system |
||||||
|
Frame Frequency |
≥60Hz |
|||||
|
Refresh Frequency |
≥960Hz |
|||||
|
Input Signal |
Composite Video, S-video, DVI, HDMI, SDI, HD-SDI |
|||||
|
Control Distance |
100m(Ethernet cable); 20KM(optical fiber cable) |
|||||
|
Support VGA Mode |
800*600, 1024*768, 1280*1024, 1600*1200 |
|||||
|
Color Temperature |
5000—9300 adjustable |
|||||
|
Brightness Correction |
Pixel by pixel, module by module, cabinet by cabinet |
|||||
|
Reliability |
||||||
|
Working Temperature |
-20～+60 ºC |
|||||
|
Storage Temperature |
-30～+70 ºC |
|||||
|
Working Humidity |
10%～90% RH |
|||||
|
Lifetime |
100,000 hours |
|||||
|
MTBF |
5000 hours |
|||||
|
Continuous Operating Time |
≥72 hours |
|||||
|
Protection Grade |
IP65(front), IP54(rear) |
|||||
|
Out-of-Control Pixel Rate |
≤0.01% |
|||||
